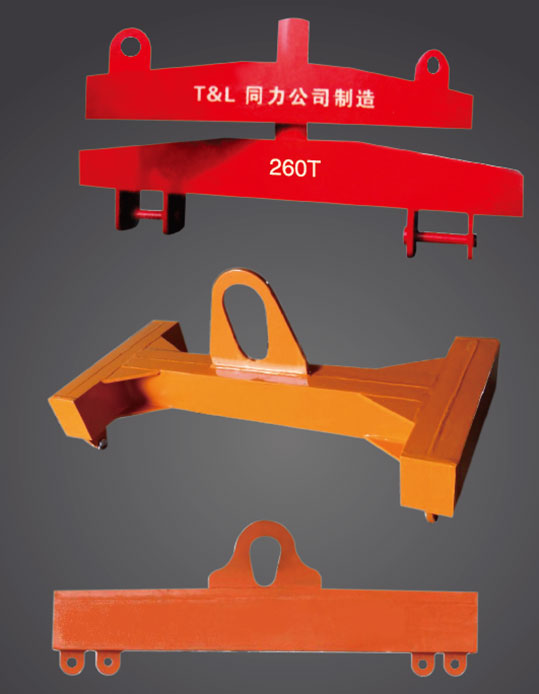

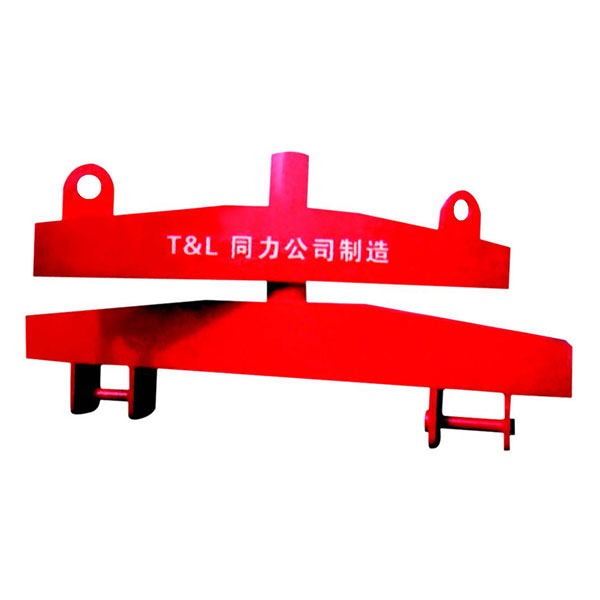

Lifting Hanging Beams

The lifting beam self-researched, designed and produced by Tongli applies to different hoisting operations. The lifting

beams are successively used to efficiently install military industrial machines. Besides, the lifting beams can be rationally

designed to meet the client’s requirements. The slings are provided.

Technology advantages:

1. Refined calculation and rational technology are

adopted to guarantee double safety coefficient.

2. Low-alloy welding flux is welded.

3. The beam is made of Q345.

Application range: hoist and handle the lifted objects evenly.

Structural composition: composed of cross beam, hook and sling

accessory.

Sling type: ordinary cross beam, I-shaped beam, turbine rotor beam,

railway rescue crane beam and large special beam.

Safety coefficient: there are different site requirements to guarantee

2-4 times of safety coefficient.

Technical support: the hoisting engineer can design the beam

according to the specific site requirements.

The safest product comes from the most 41 trusted process technology!

Product innovation fills the domestic gap and is included in the national standard.
