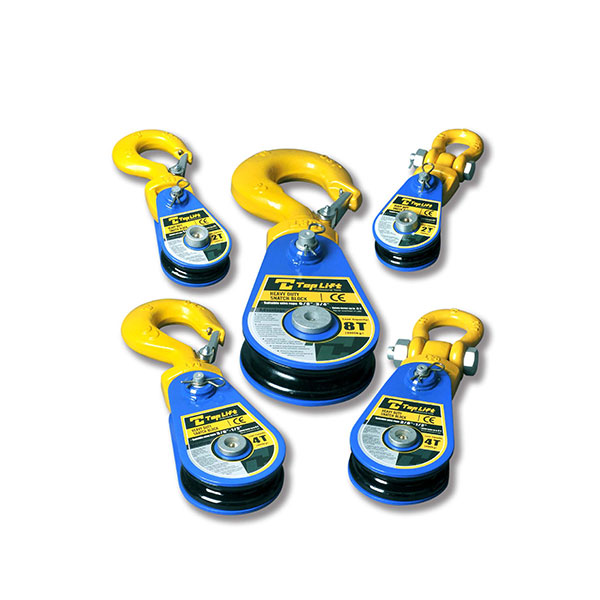

Heavy Duty Snatch Block

Toplift Industry Solutions：

The second generation of Chinese block with international standard is made of spe cial high strength alloy

steel, full die forging steel wheel or hot rolled steel wheel.

Small size, stronger pull, more safe, meet the industry for higher safety of the lifting requirements.

Technology advantages:

1. All key parts are forged with high-strength alloy steel and heat treated.

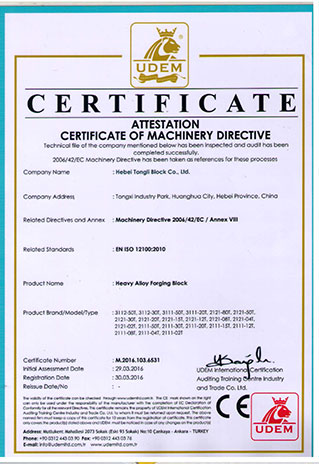

2. 4:1 safe factor, CE certificate, and meets EN 13157, and ASME 30.26.

3. Equipped with carbon steel sheave and grease nipple, convenient for

operating and repairing, and also extending service life.

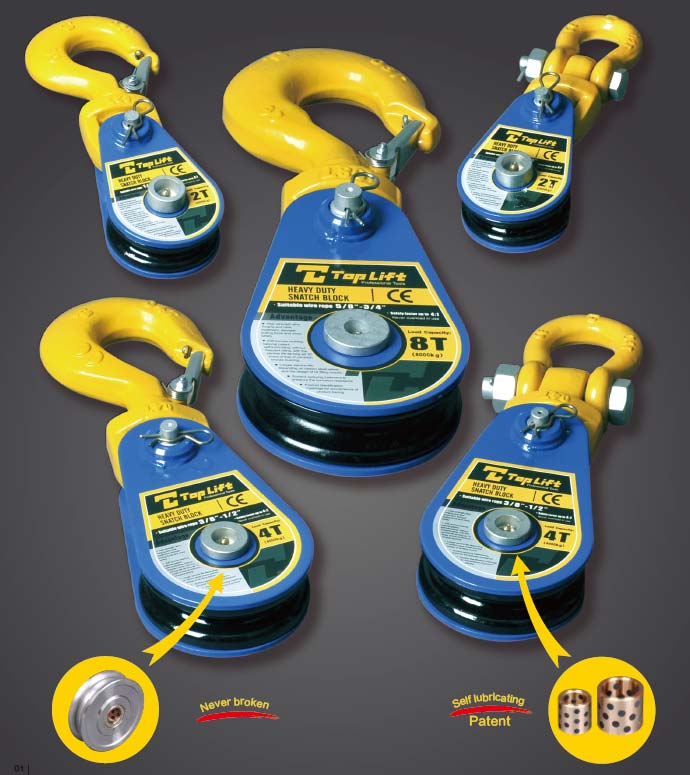

4. JDB self-lubricating sliding bearing, conveniently, does not need to be

greased quiet often, the national patent.

5. Permanent product batch no., blocks can be tracking easily.

6. Equipped with forged steel sheave or hot-rolled steel sheave.

7. Customized according to the clients’ requirements.

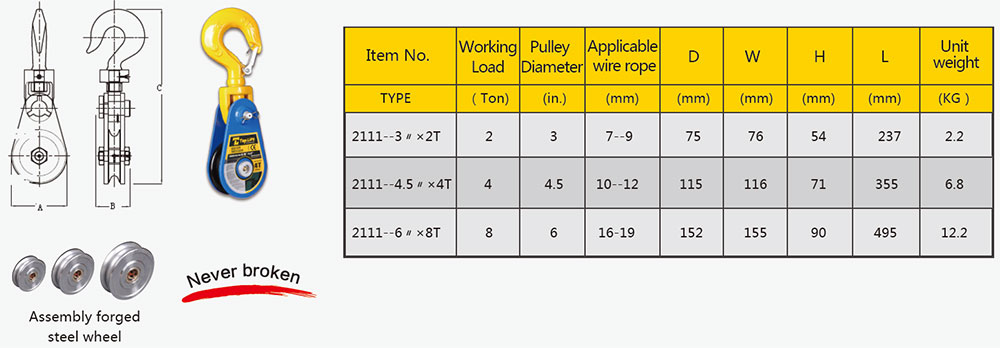

Toplift Heavy Duty Snatch Block with Hook ( forged steel sheave)

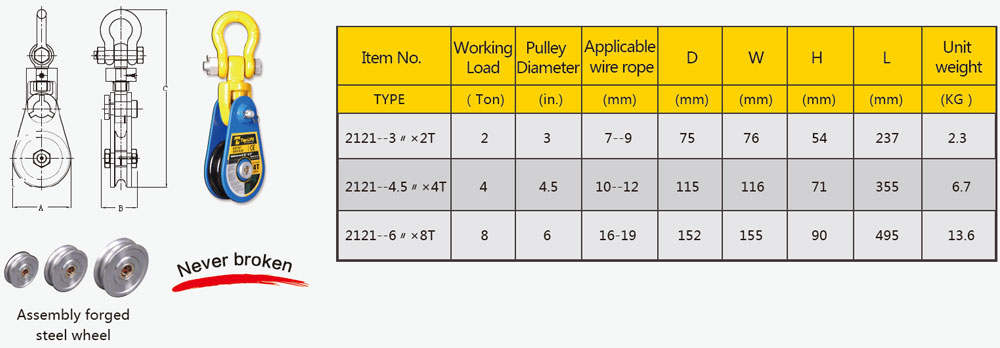

Heavy Duty Snatch Block with Shackle ( forged steel sheave)

Tongli mission: To provide the world with a top-level lifting solution for the benefit of mankind.

Technology advantages (hot-rolled steel sheave) :

1. All key parts are forged by high-strength alloy steel and heat treated.

2. CE certificate and meets European standard EN13157, and ASME 30.

3. Equipped with carbon steel sheave and grease nipple, convenient for operating and repairing, and also extending service life.

4. JDB self-lubricating sliding bearing, conveniently, does not need to be greased usually, the national patent.

5. Permanent product batch no., product can be tracking easily.

6. Equipped with hot-rolling steel sheave.

7. Customized according to the clients’requirements.

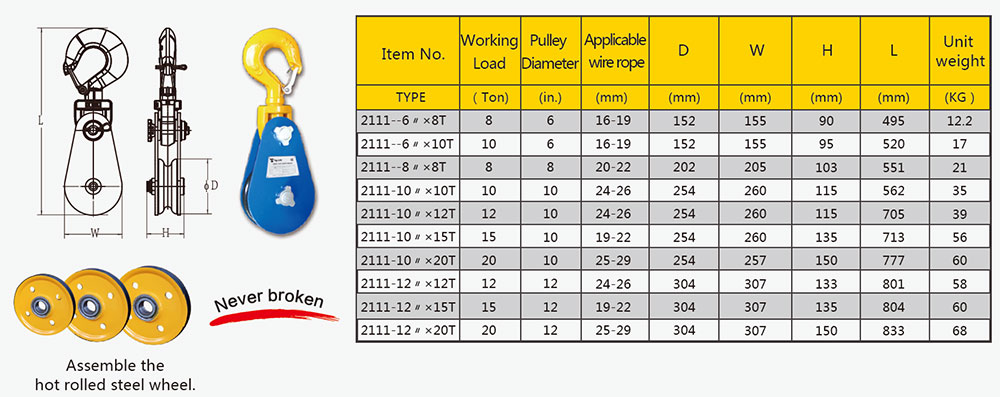

Heavy Duty Snatch Block with Hook (Hot-rolled steel sheave)

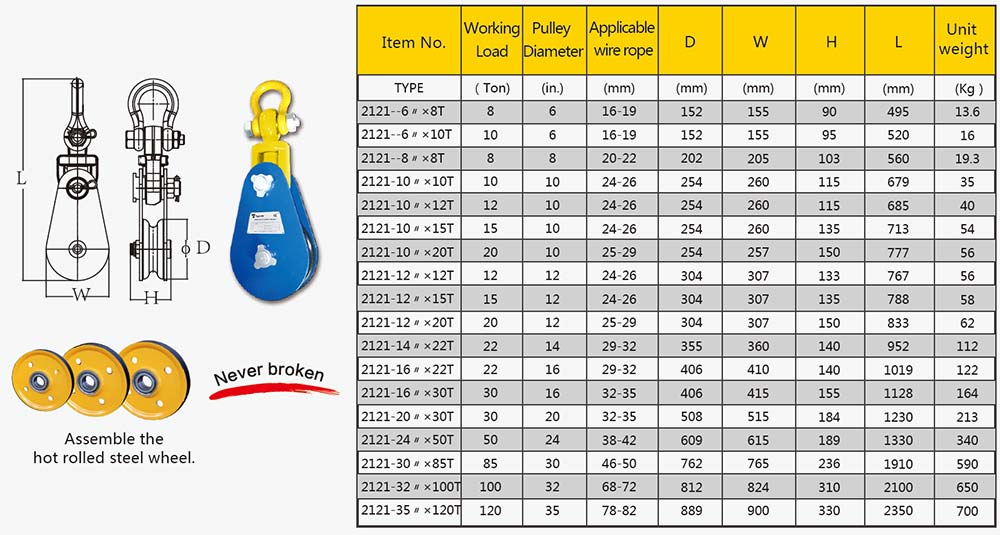

Heavy Duty Snatch Block with Shackle (Hot-rolled steel sheave)

Tongli vision: Lifting tools is all over the world hoisting site, customers at ease entrusted.
